Chapter 4: Navigating LUMI (nodes and storage)

Think of LUMI not as one giant entity, but as a massive collection of computers connected by an incredibly fast network.

Deep dive: Why supercomputing? (Optional)

You might wonder why we connect thousands of computers together instead of just building one giant one. To learn about how supercomputers use parallel processing to solve massive AI challenges (and how they differ from your laptop), check out the article: Why supercomputing and LUMI? (Optional)

The "two-room" rule: Login vs. compute

When you log in via SSH (as we did in Chapter 2), you aren't actually on the "super" part of the supercomputer yet. You are in the Lobby.

1. The Login Nodes (The lobby)

The Login Nodes are shared by hundreds of people at once. Login Nodes are named uan01, uan02, etc.

• What to do here: Organise files, write code in nano, check your project balance, and submit your "work orders" (Jobs).
• What NOT to do: Do not run anything computationally heavy, such as AI training or heavy data processing here. If the "Lobby" gets too crowded or someone starts heavy machinery there, it slows down for everyone. LUMI has automatic guards that will stop your processes if they use too much power in the Lobby. For such heavy processes, such as AI workloads, we use the Compute Nodes.

2. The Compute Nodes (The factory room)

This is where the magic happens. These are thousands of individual computers equipped with world-class GPUs and CPUs.

• How to get there: You cannot "log in" to a Compute Node directly. Instead, you "book" time on them using the Slurm scheduler (which we will cover in Chapter 7). Unlike the Login Node, you don't share CPUs and GPUs with other users; the resources you request are exclusively yours for the duration of your Job.

Choosing your engine: CPU vs. GPU

What is a CPU? The CPU (Central Processing Unit) is the general-purpose brain of a computer. Think of it as a small team of brilliant professors - it can solve very complex problems, but only a few at a time, one after another.

What is a GPU? The GPU (Graphics Processing Unit) is more like a stadium full of students, each doing simple arithmetic simultaneously. Originally designed to calculate the colour of millions of pixels at once for video games, researchers discovered that this massive parallel math power is exactly what AI needs. While you can train AI models on a CPU, it would be impractically slow - a Job that takes hours on GPUs could take weeks on CPUs.

LUMI is divided into several "Partitions" (sections) depending on what kind of hardware or service you need. The two main Partitions are:

• LUMI-C (The CPU Workhorse): These nodes have powerful processors but no GPUs. They are great for data preprocessing, traditional statistics, or "cleaning" your data before the AI training begins.
• LUMI-G (The GPU Powerhouse): This is where the AI happens. It contains 11,000 AMD MI250X GPUs. If you are training or using Large Language Models (LLMs) or computer vision models, this is where you want to be.

Within each of those hardware Partitions, the Slurm scheduler further divides resources into smaller Slurm Partitions based on Job size and duration.

LUMI-C (CPU Partitions)

Name	Max walltime (duration)	Max Jobs	Max resources/job	Purpose
standard	2 days	120	512 nodes	Larger Jobs
small	3 days	220	4 nodes	Small or memory intense Jobs
debug	30 minutes	2	4 nodes	Debugging and testing

LUMI-G (GPU Partitions)

Name	Max walltime (duration)	Max Jobs	Max resources/job	Purpose
standard-g	2 days	210	1024 nodes	Larger Jobs
small-g	3 days	210	4 nodes	Small GPU Jobs
dev-g	2 hours	2	8 nodes	Debugging

Full list of Slurm Partitions (Optional)

Exclusive vs. shared nodes (allocatable by node vs resources)

When you book resources from the standard-g Partition, this is allocatable by node. Slurm allocates entire physical nodes exclusively to you. You are the only person running code on that machine, and you are billed for all 8 GPUs on it, even if your code only uses 1.

Therefore, if you only need 1 or 2 GPUs for a smaller task, booking a whole node would be a massive waste of resources and credits. This is where small-g and dev-g come in. These are allocatable by resources (shared Partitions). When you request just 1 GPU on small-g, Slurm might place your Job on the exact same physical server as another user who requested 2 GPUs. You are "sharing" the node, meaning you are both running programs on the exact same node simultaneously.

The dev-g partition has shorter maximum job times (2 hours) but allows you to get resources faster for debugging or testing. Meanwhile, small-g is intended for longer jobs that do not need a full node.

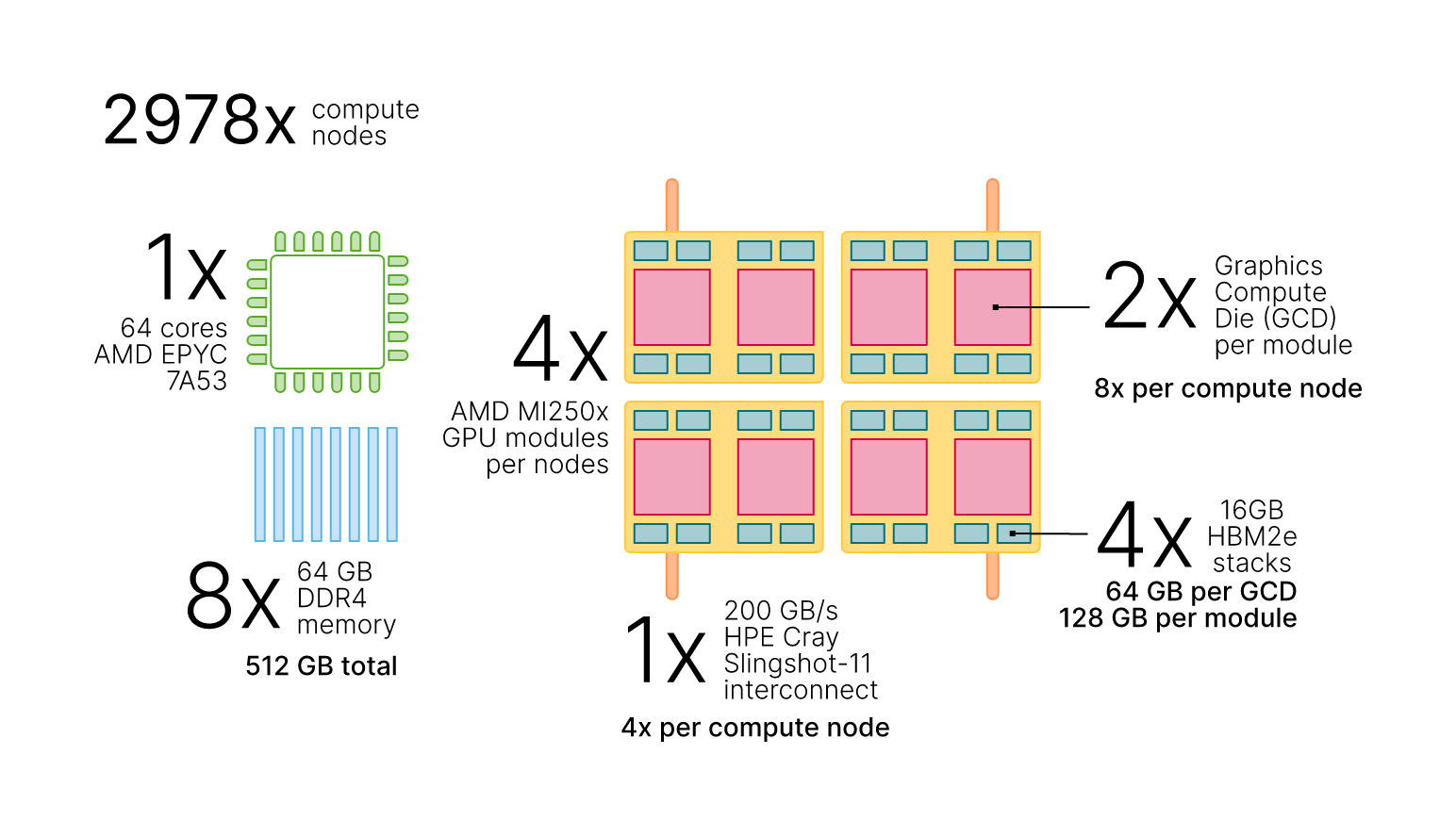

Inside a LUMI-G Compute Node (the hardware)

When you book a full GPU node on LUMI-G, here is exactly what you get inside that single physical server:

• 1 × 64-core CPU: An AMD EPYC processor that acts as the manager, handling data loading and feeding it to the GPUs. However, out of these 64 cores, only 56 are available for you to use as the rest are reserved for the operating system.
• 8 × 64GB DDR4 RAM: totalling 512GB per node, used by the CPU to load datasets, models, run data preprocessing and hold information before sending it to the GPU. However, only 60GB per stick (480GB total) is available to you as the rest is reserved for the operating system.
• 4 × AMD MI250X GPUs: The incredibly powerful accelerators where your AI models are actually trained.
• Zero Local Storage: There are no hard drives inside the Compute Nodes - all your data is accessed directly via LUMI's massive, high-speed network storage.

The "GPU vs. GCD" confusion (important!)

This is one of the most important concepts to understand about LUMI's hardware.

Each AMD MI250X is physically one large chip, but inside, it is actually split into two independent halves called Graphics Compute Dies (GCDs). Each GCD acts as its own separate GPU with its own 64 GB of dedicated video memory (VRAM).

Because they operate independently, the software and the Slurm scheduler (covered in Chapter 7) treat every GCD as a completely separate GPU.

• 1 physical MI250X chip = 2 GCDs
• 1 full LUMI-G Node (4 physical chips) = 8 GCDs

Why does this matter? Because when Slurm refers to "GPUs", it actually means "GCDs". If you look at a full LUMI-G node, Slurm will say it has 8 GPUs available, not 4. When you request resources for your Job, remember: 1 Slurm GPU = 1 GCD = half of a physical MI250X.

LUMI-G (GPU Partition) hardware description (Optional)

LUMI-C (CPU Partition) hardware description (Optional)

Where does my data live? (Storage tiers)

On your laptop, everything is usually on one "C: Drive." On LUMI, storage is split into different tiers. Using the wrong one can make your AI training run much more slowly!

Storage Name	Path	Intended Use	Limits (Quota / Max Files)	Retention	Billing Rate
User home	/users/<username>	User home directory ($HOME) for personal and configuration files	20 GB / 100k	User lifetime	NA
Project space	/project/<project>	Project home directory for shared project files	50 GB / 100k	Project lifetime	1x
Project scratch	/scratch/<project>	Temporary storage for input, output or checkpoint data	50 TB / 2000k	Project lifetime	1x
Project flash	/flash/<project>	High performance temporary storage for input and output data	2 TB / 1000k	Project lifetime	3x

More info on LUMI Storage (Optional)

Jobs and data privacy

On a shared supercomputer, privacy behaves differently than on a personal computer:

• Storage Access: Your home directory (/users) is private to you. However, project directories (/project, /scratch, /flash) are by default fully visible and accessible to all members of your project.
• Shared Compute Nodes: When using shared Partitions (such as small-g or dev-g), other users running on the same node can see the names of the commands and programs you are running (like seeing python my_script.py in a task manager). They cannot see the actual contents of your files or the output of your programs.
• Job Details: Information about your submitted Slurm Jobs (including Job names and submission paths) is visible to all users on the system via monitoring commands.

Read the official LUMI Jobs and Data Privacy Guide to understand visibility rules and best practices for securing sensitive information. (Optional - recommended if you work with confidential code or data)

GDPR and sensitive data

Beyond internal system visibility, you must also consider legal compliance before uploading datasets. When it comes to personal and sensitive information, it is important to distinguish between two types of data processing:

1. LUMI User Data: LUMI processes personal data related to its users (such as names, organisational affiliations, and contact information) for account management and service operation. For this, LUMI acts as the Data Controller. You can read more in the Privacy Notice for processing of user data on the LUMI Service.
2. Personal Data in User Datasets: You might use LUMI to process datasets that contain personal data. In this context, your organisation acts as the GDPR Data Controller, and LUMI acts as the Data Processor. As the Data Controller, your organisation is responsible for assessing whether the selected LUMI service provides an adequate level of security and compliance for your specific dataset. Depending on your dataset, the requirements differ:
   • Anonymised Data: Fully anonymised datasets are generally well suited for processing in LUMI as they fall outside the scope of GDPR.
   • Identifiable Data: Identifiable personal data may be processed provided that appropriate security controls and contractual arrangements, including a Data Processing Agreement (DPA) where applicable, are in place.
   • Highly Sensitive Data (Special Categories): You must exercise extreme caution before processing special categories of personal data, such as health or biometric records. While the Terms of Use may allow this under specific conditions, LUMI's shared architecture means that guaranteeing the secure deletion of data after processing is not straightforward. Therefore, if your project requires handling such sensitive information, you are strongly encouraged to contact the LUMI team in advance to assess your use case and establish the necessary safeguards before uploading any data.

Read the LUMI General Terms of Use (Optional - read it before processing personal data)

Moving your data to LUMI

As an industry customer, you likely have your own datasets ready to go. To get them onto LUMI:

1. Small Files: Use the "Upload" button in the LUMI Web Interface.
2. Large Datasets: Use scp or rsync from your Terminal. These tools are designed to handle gigabytes or even terabytes of data reliably.

How to move your data to LUMI

Summary checklist

• You understand the difference between Login Nodes and Compute Nodes.
• You understand the difference between LUMI-C and LUMI-G.
• You know which storage tier to use for your data.
• You understand how privacy works on shared nodes and directories.
• You know the rules for processing personal and sensitive data on LUMI.

Knowledge check

Chapter 4 Quiz

Question 1 of 6

What is the primary difference between a Login Node and a Compute Node?

• Login Nodes are for managing files and submitting Jobs, while Compute Nodes are reserved for running computationally heavy tasks like AI training.
• Login Nodes are used for CPU processing, while Compute Nodes are used exclusively for GPUs.
• Login Nodes are private to you, while Compute Nodes are shared with all LUMI users.
• You run your AI scripts directly on the Login Node, and the Compute Node handles the data storage.
